TS600

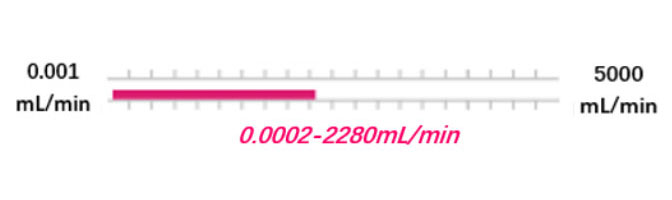

Flow range:0.0002-2280mL/min
Number of channels:1
Brief：
Manual BCD dial switch
0-5V, 0-10V, 4-20mA, 0-10kHz, RS485 external control optional

User adjustable speed OEM peristaltic pump

Project	Parameter
Speed range	≤600rpm
External control speed control resolution	1rpm
Direction control	External input empty contact, contact open, peristaltic pump operates clockwise, contact closed, peristaltic pump operates counterclockwise.
Start stop control	External input empty contact, contact opens, peristaltic pump runs, contact closes, peristaltic pump stops.
BCD dial switch speed control	The speed corresponding to position 0 of the 31st BCD dial switch is controlled by an external signal. At low speed, the corresponding speed (rpm) for gears 1-F is 5, 10, 20, 40, 60, 80, 100, 125, 150, 175, 200, 225, 250, 275, and 300. When in high gear, the corresponding speed for gears 1-F
External signal speed control (optional)	4-20mA linear corresponds to 1-600rpm, 0-5V linear corresponds to 0-600rpm, 0-10V linear corresponds to 0-600rpm, and 0-10kHz linear corresponds to 0-600rpm.
Communication address setting	5位DIP拨码开关，通信地址设定范围为1-30,31为广播地址。
Communication Baud Rate Setting	1-bit DIP dial switch, available at 1200bps or 9600bps.
Overall dimensions (L×W×H)	185125136（mm）
Relative humidity of working environment	＜80%
Applicable power supply	DC24V/80W
Weight	2.12kg

Adapted pump head	Adaptor hose specifications	Reference flow rate
YZ1515X	13# 14# 19# 16# 25# 17# 18#	2280mL/min
YZ2515X	15# 24#	1740mL/min
