CNS3600

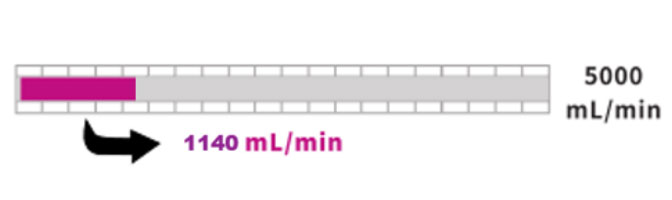

- Flow range:0.007-1140 mL/min
- Number of channels:A variety of pump head optional
- Brief：Flow range:0.007-1140 mL/min
RPM: 300 rpm
- Consultation hotline：0086-312-3125033
-
Flow range
Technical Parameter
| Speed range (equipped with NC pump head) | ≤100rpm |
| Speed range (with other pump heads) | ≤300rpm |
| Overall dimensions (L × W × H) | 100×102×135 (mm) |
| Relative humidity of working environment | ＜80% |
| Ambient Temperature | 0℃~40℃ |
| Applicable pump head | Applicable hose | Flow range（ml/min） | Weight（kg） |
| NC | Wall thickness 0.8-1.0mm，Inside diameter≤3.17mm | 0.005-32（Single channel） | 2.9 |
| YZ1515X | 13# 14# 19# 16# 25# 17# 18# | 0.007-1140 | 3.12 |
| YZ2515X | 24# 15# | 0.16-800 | 3.12 |
